SFU 0200X

Technische Daten Technical specifications

SFU

0200X/1

0200X/2

Netzanschluss Supply connection

115/230 V 50…60 Hz

Option zum Netzanschluss Option for supply connection

Umschaltbar mittels Drehschalter und Austausch der Sicherung switchable with rotary switch and exchange of fuse

Nennleistung Continuous output power (S1 – 100%)

325 VA

520VA

Ausgangsspannung Output voltage

36 V

60 V

Phasendauerstrom Continuous phase current

7,5 A

Phasenspitzenstrom Peak phase current

9 A

Ausgangsfrequenz Output frequency

AC 4.000 Hz DC 1.666 Hz

Motoranschluss Motor connection

Tisch / Desktop: alle gängigen Steckertypen / all motor connectors available SSE: Steck-Schraubklemmen / pluggable screw terminals

Spindelkennlinien Spindle characteristics

max. 16, intern abgelegt max. 16, stored internally

Sensoreingänge Spindle sensor inputs

Drehgeber / speed sensor Temperatur / temperature: PTC, KTY, PT1000, …

Steuereingänge Control inputs

2 x Analog: 0 – 10 V 4 x Digital: 0/24 V

Steuerausgänge Control outputs

1 x Analog: 0 – 10 V 3 x Digital: 0V / 24V 1 x Digital: Relaisausgang / relay outputs

Schnittstelle Interface

USB, RS 232

Schutzart Protection

IP20

Sicherheitsfunktionen Safety features

optinal: STO (Safe Torgue Off) EN 60204-1 & IEC 61800-5-2

Maße B x H x T (mm) Dimensions W x H x D (mm)

Desktop: 243 x 94 x 220 SSE: 90 x 265 x 268

Gewicht Weight

Desktop: ca. 5 kg SSE: ca. 5,5 kg

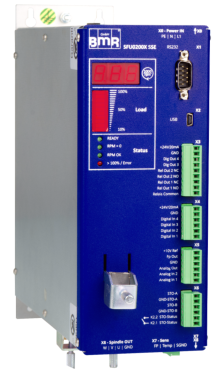

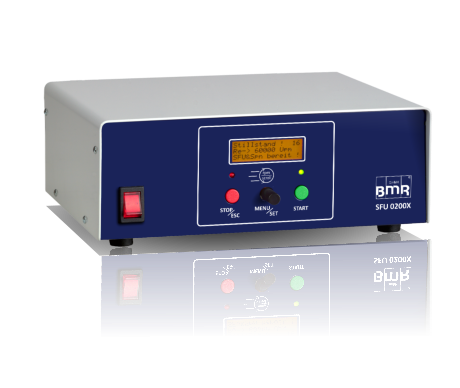

• The workhorse among compact converter rethought • LC-Display for status, cofiguration and debugging • Smaller, lighter, stronger and more efficient as its predecessor • available in four different performance classes • Ready for connection (no additional accessories requiered) • Available as desk-top unit and control cabinet version (SSE) • High safety due to true galvanic isolation of spindle connection from the mains • STO (Safe Torgue Off) optional available
